• Assist steps
• Glass, tinted
• Grille, Silver
• LED Headlamps
• Mirror, outside left hand and right hand dual cab mounted exterior with integral convex mirror
• Tires, front, 225/70R19.5 G, LRR (low rolling resistance) tubeless steel belted radial, all-season
• Tires, rear, 225/70R19.5 G, LRR (low rolling resistance) tubeless steel belted radial, all-season
• Wheels, 19.5" x 6", K steel
• Windshield wiper, pulse, wet arm

• Air conditioning, single-zone manual, integral in-dash mounted
• Cruise control, electronic, automatic
• Cup holders
• Door locks, power
• Driver Information Center
• Floor mats
• Lighting, interior dome
• Seat trim, Cloth

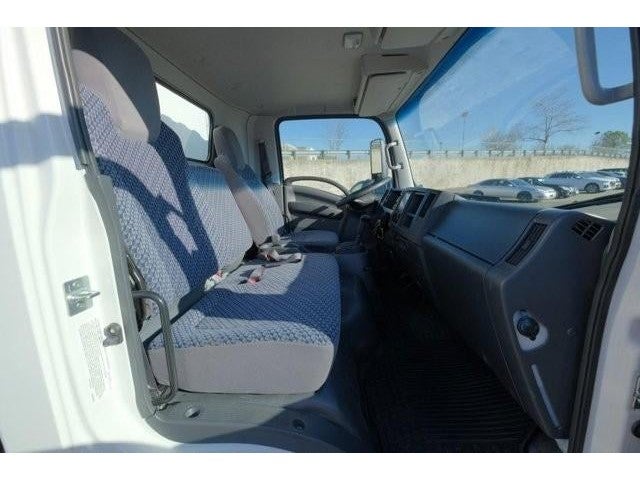

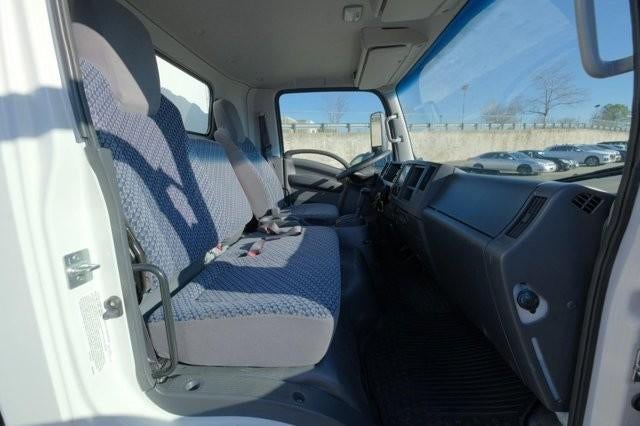

• Seat, front high back bucket driver and passenger tricot cloth covered reclining high back driver seat with single two-occupant fold down passenger seat
• Steering column, Tilt-Wheel
• Steering wheel, urethane

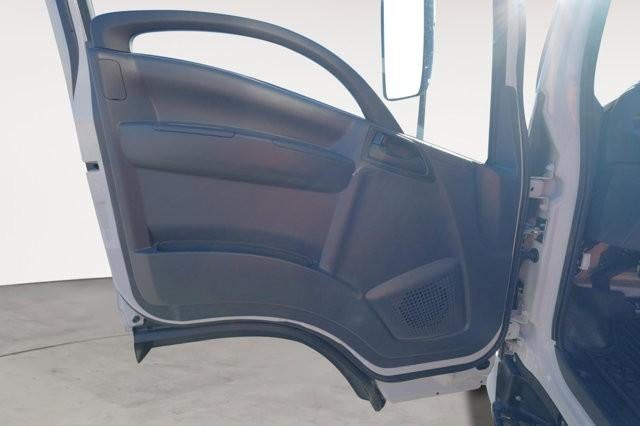

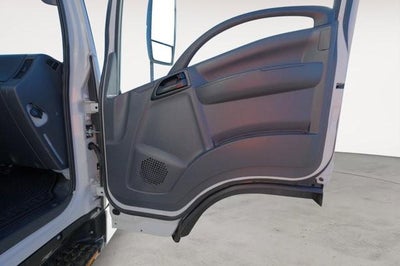

• Storage, door pockets
• Storage, seatback pockets
• Windows, power
• Windshield washer bottle access on passenger side dash when passenger-side door is open

• Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
• Axle, 4.30 ratio (Standard on 4500 model only.)
• Battery, 750 cold-cranking amps, 12-volt single, maintenance free, frame-mounted battery box
• Brakes, 4-wheel antilock, front disc
• Drivetrain, rear-wheel drive
• Exhaust, single outlet
• Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
• Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering. ratio 18.8-20.9:1
• Fuel tank, 38.6 Gallon, (146L), rectangular fuel tank. mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill.
• GVWR, 14,500 lbs. (6577 kg)
• Incomplete vehicle certification
• Rear suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
• Vehicle Application Truck
• Wheelbase, 176" (447.0 cm)

• Daytime Running Lamps

[{"Header":"Entertainment","Standard":"Audio System, Am/Fm Stereo With Cd Player, Auxiliary Jack, Usb Port And Bluetooth®"},{"Header":"Entertainment","Standard":"Audio System Feature, 2 Speakers"},{"Header":"Exterior","Standard":"Assist Steps"},{"Header":"Exterior","Standard":"Glass, Tinted"},{"Header":"Exterior","Standard":"Grille, Silver"},{"Header":"Exterior","Standard":"Led Headlamps"},{"Header":"Exterior","Standard":"Mirror, Outside Left Hand And Right Hand Dual Cab Mounted Exterior With Integral Convex Mirror"},{"Header":"Exterior","Standard":"Tires, Front, 225/70R19.5 G, Lrr (Low Rolling Resistance) Tubeless Steel Belted Radial, All-Season"},{"Header":"Exterior","Standard":"Tires, Rear, 225/70R19.5 G, Lrr (Low Rolling Resistance) Tubeless Steel Belted Radial, All-Season"},{"Header":"Exterior","Standard":"Wheels, 19.5\" X 6\", K Steel"},{"Header":"Exterior","Standard":"Windshield Wiper, Pulse, Wet Arm"},{"Header":"Interior","Standard":"Air Conditioning, Single-Zone Manual, Integral In-Dash Mounted"},{"Header":"Interior","Standard":"Cruise Control, Electronic, Automatic"},{"Header":"Interior","Standard":"Cup Holders"},{"Header":"Interior","Standard":"Door Locks, Power"},{"Header":"Interior","Standard":"Driver Information Center"},{"Header":"Interior","Standard":"Floor Mats"},{"Header":"Interior","Standard":"Lighting, Interior Dome"},{"Header":"Interior","Standard":"Seat Trim, Cloth"},{"Header":"Interior","Standard":"Seat, Front High Back Bucket Driver And Passenger Tricot Cloth Covered Reclining High Back Driver Seat With Single Two-Occupant Fold Down Passenger Seat"},{"Header":"Interior","Standard":"Steering Column, Tilt-Wheel"},{"Header":"Interior","Standard":"Steering Wheel, Urethane"},{"Header":"Interior","Standard":"Storage, Door Pockets"},{"Header":"Interior","Standard":"Storage, Seatback Pockets"},{"Header":"Interior","Standard":"Windows, Power"},{"Header":"Interior","Standard":"Windshield Washer Bottle Access On Passenger Side Dash When Passenger-Side Door Is Open"},{"Header":"Mechanical","Standard":"Air Cleaner, Heavy-Duty, 11\" Diameter Dry Paper Single Element. Air Cleaner Canister Standard With Air Restriction Gauge. Back Of Cab Location."},{"Header":"Mechanical","Standard":"Axle, 4.30 Ratio (Standard On 4500 Model Only.)"},{"Header":"Mechanical","Standard":"Battery, 750 Cold-Cranking Amps, 12-Volt Single, Maintenance Free, Frame-Mounted Battery Box"},{"Header":"Mechanical","Standard":"Brakes, 4-Wheel Antilock, Front Disc"},{"Header":"Mechanical","Standard":"Drivetrain, Rear-Wheel Drive"},{"Header":"Mechanical","Standard":"Engine, 6.6L V8 Sidi, Gmpt-V8 8 Cylinder V Iron Block, Four Cycle Overhead Valve Water Cooled 6.6L Sidi V8 350 Hp [261 Kw] @ 4500 Rpm, 425 Lb.-Ft Of Torque [575.8 N-M] @ 3800 Rpm. Electronically Controlled Direct Fuel Injection. Six Bolt Main Cap Design For Heavy-Duty Performance. Engine Control Module (Ecm) And Transmission Control Module (Tcm) Engine Control System. Engine Cruise Control, Engine Oil Cooler, High Idle Mode (1200 Rpm)."},{"Header":"Mechanical","Standard":"Exhaust, Single Outlet"},{"Header":"Mechanical","Standard":"Frame, Ladder-Type Channel Frame. Full C Section Straight Frame 33.5\" (85.1 Cm) Wide. Yield Strength 44,000 Psi, Section Modulus 7.20 Cu.In. And Rbm 316,800 Lb-Ft/In Per Rail."},{"Header":"Mechanical","Standard":"Front Axle, 6,830 Lbs. (3098 Kg), Reverse Elliot \"I\"-Beam

• Integral Hydraulic Power Steering. Ratio 18.8-20.9:1"}
• {"Header":"Mechanical"
• "Standard":"Fuel Tank
• 38.6 Gallon
• (146L)
• Rectangular Fuel Tank. Mounted Between Frame Rail With Electric Type Fuel Pump (Mounted In Tank). Through The Rail Fuel Fill."}
• {"Header":"Mechanical"
• "Standard":"Gvwr
• 14
• 500 Lbs. (6577 Kg)"}
• {"Header":"Mechanical"
• "Standard":"Incomplete Vehicle Certification"}
• {"Header":"Mechanical"
• "Standard":"Rear Suspension
• 12
• 900 Lbs. (5851 Kg)
• Multi-Leaf
• Semi-Elliptical Steel Alloy. Includes Shock Absorbers"}
• {"Header":"Mechanical"
• "Standard":"Transmission
• 6-Speed Automatic
• 6L90-E Hydra-Matic With Lock-Up Converter And Overdrive. Ratios: Gear And Ratios 4.027
• 2.364
• 1.532
• 1.152
• 0.852
• 0.667
• Rev. 3.064:1"}
• {"Header":"Mechanical"
• "Standard":"Vehicle Application Truck"}
• {"Header":"Mechanical"
• "Standard":"Wheelbase
• 176\" (447.0 Cm)"}
• {"Header":"Safety"
• "Standard":"Brake
• Parking
• Cable Actuated
• Internal Expanding Drum Type
• Transmission-Mounted"}
• {"Header":"Safety"
• "Standard":"Daytime Running Lamps"}]

• Bluetooth® Connection

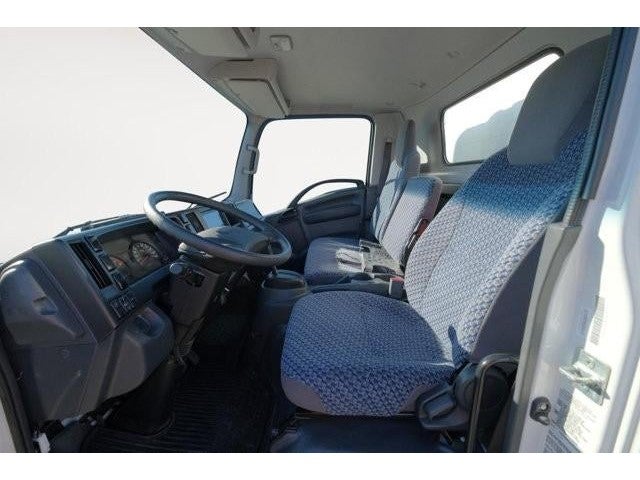

• Cloth Seats

• Vehicle
• Number of Passenger Doors: 2
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6630
• Gross Axle Wt Rating - Rear (lbs): 11020
• Curb Weight - Front (lbs): 3588
• Curb Weight - Rear (lbs): 2025
• Gross Vehicle Weight Rating Cap (lbs): 14500
• Gross Combined Wt Rating (lbs): 20500
• Suspension
• Suspension Type - Front: Semi-Elliptical Multi-Leaf Spring
• Suspension Type - Rear: Semi-Elliptical Multi-Leaf Spring
• Spring Capacity - Front (lbs): 6830
• Spring Capacity - Rear (lbs): 12900
• Axle Type - Front: I-Beam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6830
• Axle Capacity - Rear (lbs): 11020
• Axle Ratio (:1) - Rear: 4.30
• Shock Absorber Diameter - Front (mm): 42.0
• Shock Absorber Diameter - Rear (mm): 42.0
• Stabilizer Bar Diameter - Front (in): 1.65
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.5 x - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 12.6 x 3.94
• Tires
• Front Tire Order Code: 2TC
• Rear Tire Order Code: 3TC
• Front Tire Size: 225/70R19.5
• Rear Tire Size: 225/70R19.5
• Front Tire Capacity (lbs): 6630
• Rear Tire Capacity (lbs): 12460
• Revolutions/Mile @ 45 mph - Front: 643
• Revolutions/Mile @ 45 mph - Rear: 643
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Front Wheel Offset (mm): 127
• Rear Wheel Offset (mm): 127
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.8 - 20.9
• Steering Ratio (:1), At Lock: 18.8 - 20.9
• Turning Diameter - Curb to Curb (ft): 51.9
• Turning Diameter - Wall to Wall (ft): 58.0
• Frame
• Frame Type: Ladder-Type C-Section
• Sect Modulus Rails Only (in³): 7.20
• Frame RBM (N/A): 316800
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.50 X 2.76 X 0.24
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 38.6
• Fuel Tank Location: Frame Rail
• Exterior Dimensions
• Wheelbase (in): 176.0
• Length, Overall (in): 267.5
• Width, Max w/o mirrors (in): 81.3
• Height, Overall (in): 90.9
• Overhang, Front (in): 48.4
• Overhang, Rear w/o bumper (in): 43.1
• Front Bumper to Back of Cab (in): 70.9
• Cab to Axle (in): 153.5
• Cab to End of Frame (in): 196.6
• Ground to Top of Frame (in): 33.0
• Frame Width, Rear (in): 33.5
• Ground Clearance, Front (in): 8.3
• Ground Clearance, Rear (in): 8.3
• Body Length Default Value (ft): 20
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 38.40
• Front Leg Room (in): 29.50
• Front Shoulder Room (in): 70.70
• Front Hip Room (in): 67.70
• Summary

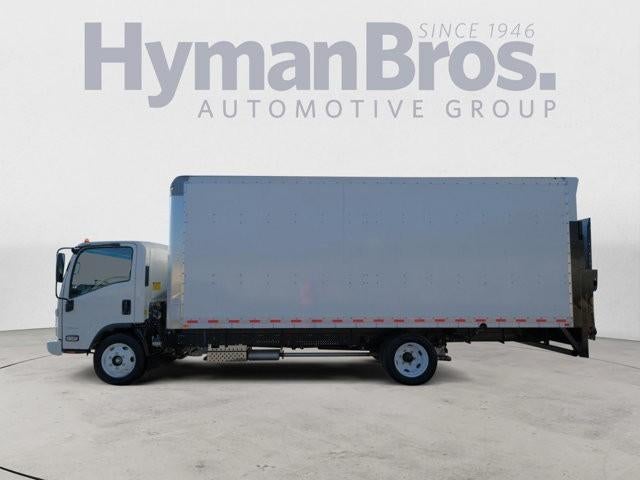

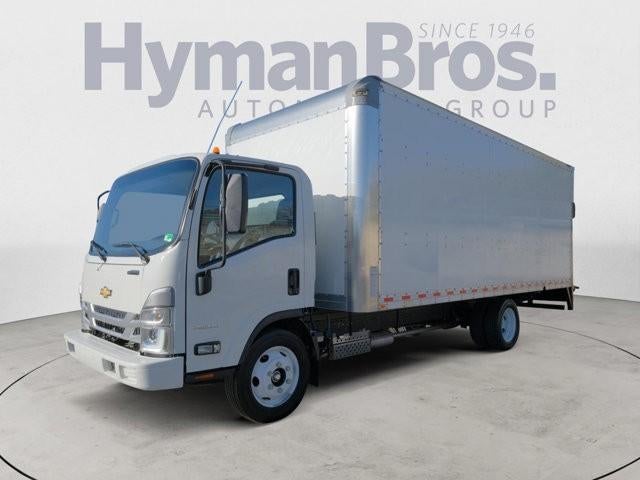

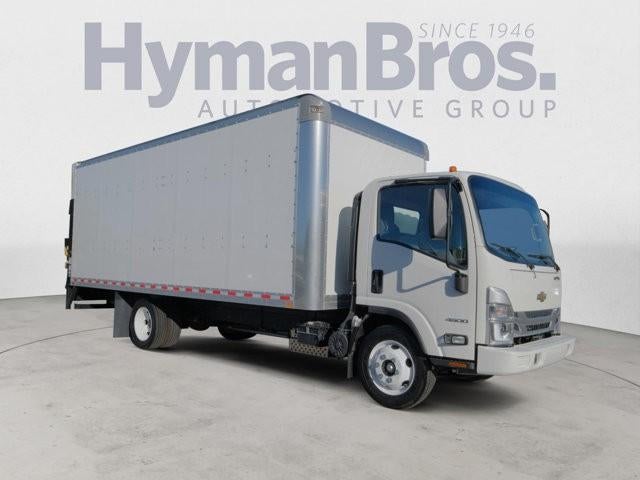

• Vehicle Name: Chevrolet 4500 LCF Gas
• Body Style: Regular Cab Chassis Cab
• Medium Duty Performance
• Driver Ratio: - TBD -
• Torque @ Clutch Engage (ft-lbs): - TBD -
• Static Loaded Radius (in): - TBD -
• Max Speed For Gradeability: - TBD -
